Revised Spec trx 2.0

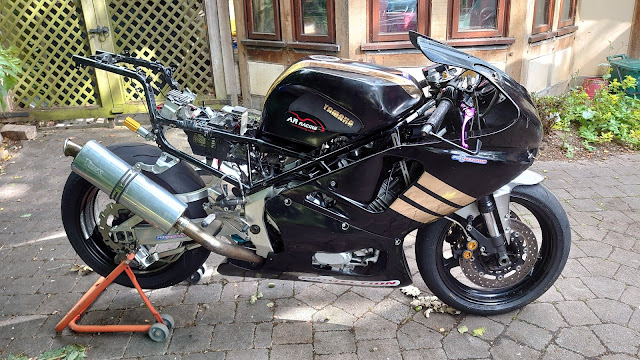

Trx 850 frame with rear side tubing removed. FCR41's with open bell mouths, single cable throttle, r6 1999 radiator fan removed, Full bore race exhaust from projection components. R1 aluminium front fairing frame, Modified R1 yokes with trx stem( projection components ), complete R1 front end. Nitron 3 way race shock, yzr750 rear end. Renthal 520 chain conversion race sprockets from Thundercat Modified cheapo 'Rear sets' lightweight from Thailand! Crankcase breather tube from generator and cylinder head to enclosed container under tank with filter. Modified R 7 fairing. A 2000 cbr6 glass fibre race seat. P&R racing GPS laptimer. Wiring loom kept original apart from the safety start soleniod removed....
Rear rain light fitted. clocks modified, just using Rev counter.

Weight TBA!

Thursday, 22 October 2020

sold

The Trx is sold................The end of this blog

Theres always thr VFR blogs to follow when I have a chance.

Monday, 31 August 2020

Selling the trx

















 Sad day today, I've been thinking about this for a few weeks now. I just can't see myself enjoying this anymore, I just don't have the time. Its a waste sitting in the garage so someone out there might want it, either as a race bike or to put it back for the road. Ill update with an ebay listing soon.

https://photos.google.com/share/AF1QipO0NGeuKgz5sfLESx-AxwhzuaBD7ElCDa60gBKCBzx00Ec6g5-b23ZZpxaK6UoppQ?key=cjNDSU51ZHBUSkhaYnJIczJFa2pCbktSVnM1c3dR

Friday, 24 April 2020

update covid 19: have time to do a little more

just got the bike out and re thought the fairing, I will re use the R7 replica, it needs a little fixing here and there but have purchased a glass fibre repair kit, new screen, soon to add handle bar brake lever protectors. First fire up with Ignitech ignition unit. Have some vinyl wrap for the rear eat so ill have a go at that soon. I guess its taken me 5 years toget to this poin, now with covid19 no rush at all.

Wednesday, 11 December 2019

Tidying up the rear electrics


Cut down the rectifier fins so the seat can fit, attached to aluminium plate so will dissipate heat. Connected ignitec ignition , fitted gps lap timer module.

Friday, 2 August 2019

Ignitech ignition

Today arrived an Ignitech tcip4 programmable ignition unit. Hopefully this will cure the lumpy ness low down which caused me to high side at Donington a while back.

Saturday, 13 July 2019

Been a year, update


Instead of a large full fairing , I’ve decided to minimise this by using the nose cone off my other machine( vfr750 racer) as that’s mothballed. Next tasks, create bracket for top faring to fit to the mount already used. Put some crash bungs on the side main frame engine mount. Fix the ignition with a Ignitech4 system on order. Already found a blockage and a leak in the petrol tap so that’s fixed now. Fit the rear rain light. Once I have it running, I can test the fuelling and ignition and put to rest the gearbox trouble I fear.

Saturday, 21 July 2018

Revisiting the Trx after a long break

Still lots to do before a test , clocks nearly fixed to the front frame, just a bit of tweaking . Re filled water in the system after a being stored in the shed. Have a dent in the tank where the bike fell over and I will  put a new brake lever in as that’s snapped. The timing seems to go a bit astray, the TPS sensor while reading ok on the multimeter for resistances doesn’t want to work in the FCR TPS mount, the FCR has a shaft that rotates with the throttle but is on a spring mount , the TPS has too much springy resistance and I think the FCR shaft can not overcome this springy force.
Other things, I still have to wire in the rain light and switch, fix the faring and by a new clear screen. The it’s ready for a test ride.
